It is 72V 90KPH electric car motor conversion kits dual 3000W hub motor kits for car features and appearance that differentiates it from other products in the market. We pay close attention to the selection of raw materials and the use of manufacturing technologies. In this way, the quality and performance of Electric tricycle,Electric sedan car,Electric SUV car,Electric van car can be better guaranteed. By virtue of continuous technological innovation, we have mastered the core and most advanced technology in the industry, and will use advanced technology to produce 72V 90KPH electric car motor conversion kits dual 3000W hub motor kits for car, effectively solving the pain points that have always plagued the industry. To keep ourselves ahead of other competitors, we will strive forward to improve our R&D strength and technology ability. Taizhou Yibu Industry & Trade Co. LTD hope that one day we will develop more and better products without relying on others' technologies.

Warranty:3months-1yearPlace of Origin:Zhejiang, China
Brand Name:EBUModel Number:500-1100
Usage:CarType:CAR MOTOR, hub motor
Torque:High torqueConstruction:Shunt Wound
Commutation:BrushlessProtect Feature:Waterproof, Explosion-proof
Speed(RPM):500-1100Continuous Current(A):36
Efficiency:IE 2Product Name:CAR MOTOR
Size:14-18inchColor:Black
Efficience:85%Motor type:DC Brushless Three Phase
Weight:20kgCertification:ce

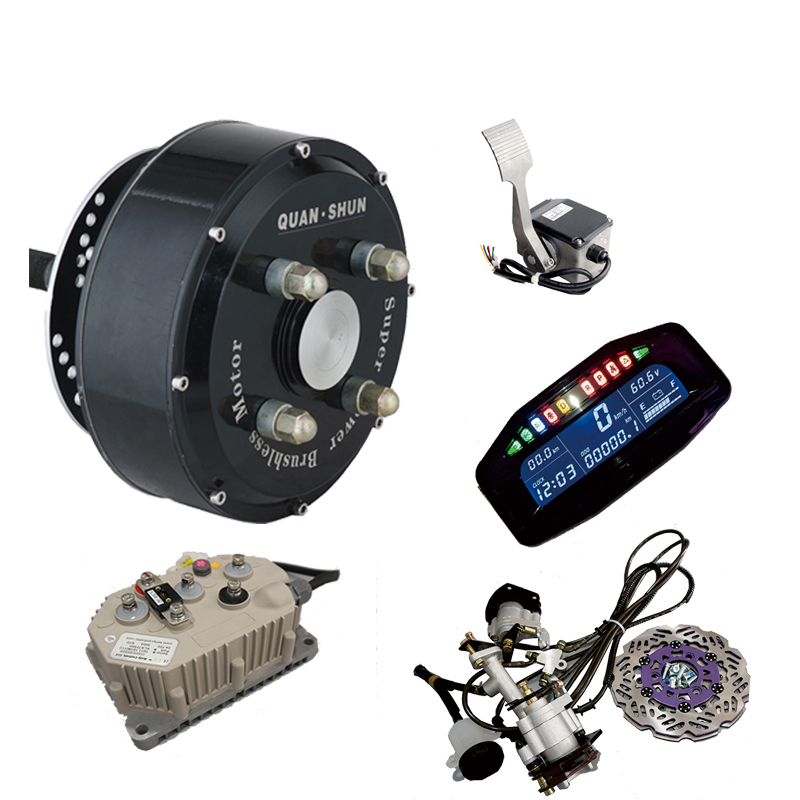

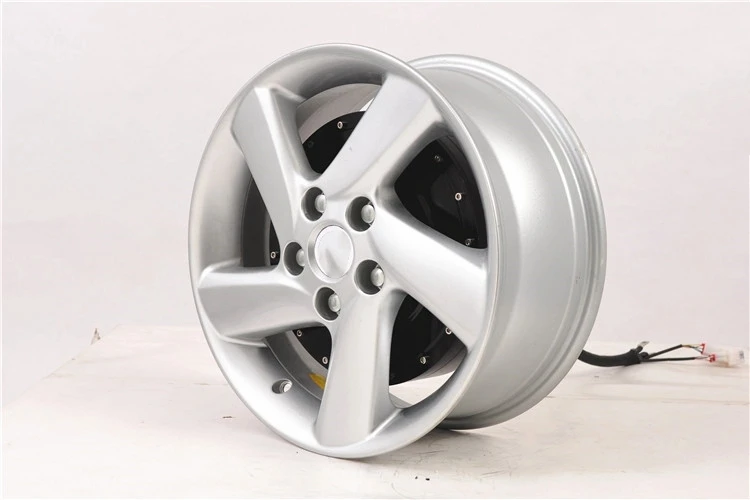

72V 90KPH electric car motor conversion kits dual 3000W hub motor kits for car
Product Paramenters
Motor type
Brushless DC hub motor
Item
Harley motor
Voltage
48-92V
Rated Current
36A
Normal Power
3000W
Rated power
1800W
speed
500-1100rpm(customized)
Rated speed
45-90km/h
Size
14-18inch
Rim
8*7inch
Tire size
18*9.5*8inch
Brake style
Disk Brake
Net weight
17.5kg
Load weight
up to 200kg
1. QS Motor 3000 205 50H V3 E-Car Hub Motor
* Motor Type: BLDC Hub Motor with Permanent Magnet

* Motor design: Single axle out without
* PCD for rim installation: 4 x100mm, 5x114.3mm
* CB: >60mm
* Magnet Height: 50mm
* No. of Pole Pairs: 16 pair
* Rated Power: 3000W
* Peak Power: 6000W
* Rated Voltage: 72V( 60V-144V Can be optional)
* Speed: 80km/h (40-100km/h can be customized
* Max No-load RPM: 1000RPM
* Max Torque: 182N.m
* Max Efficiency:90%
* Continious current:83A
* Max current:120A (Peak 170A in short time)
* Brake type: Disc brake
* Winding Core material: Aluminium
* Cross Section of Phase wire: 10 mm2
* Hall sensor phasing angle: 120 degree
* Temperature Sensor: Optional
* Max. Working Temperature: 70 degree, Peak 120 degree
* Waterproof Grade: IP54
* Color: Black
* N.W./ G..W. : 17kgs /18.5kgs
* Package Size: 34*34*33CM

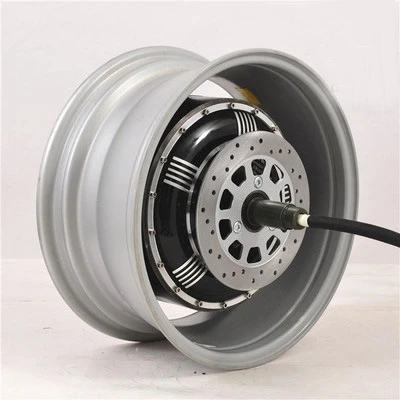

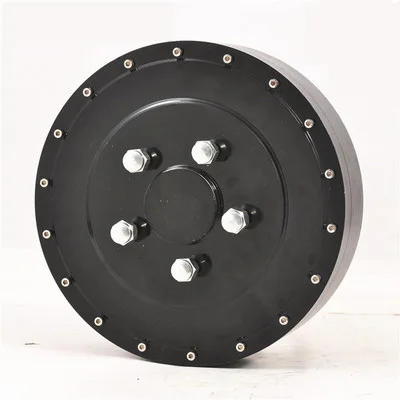

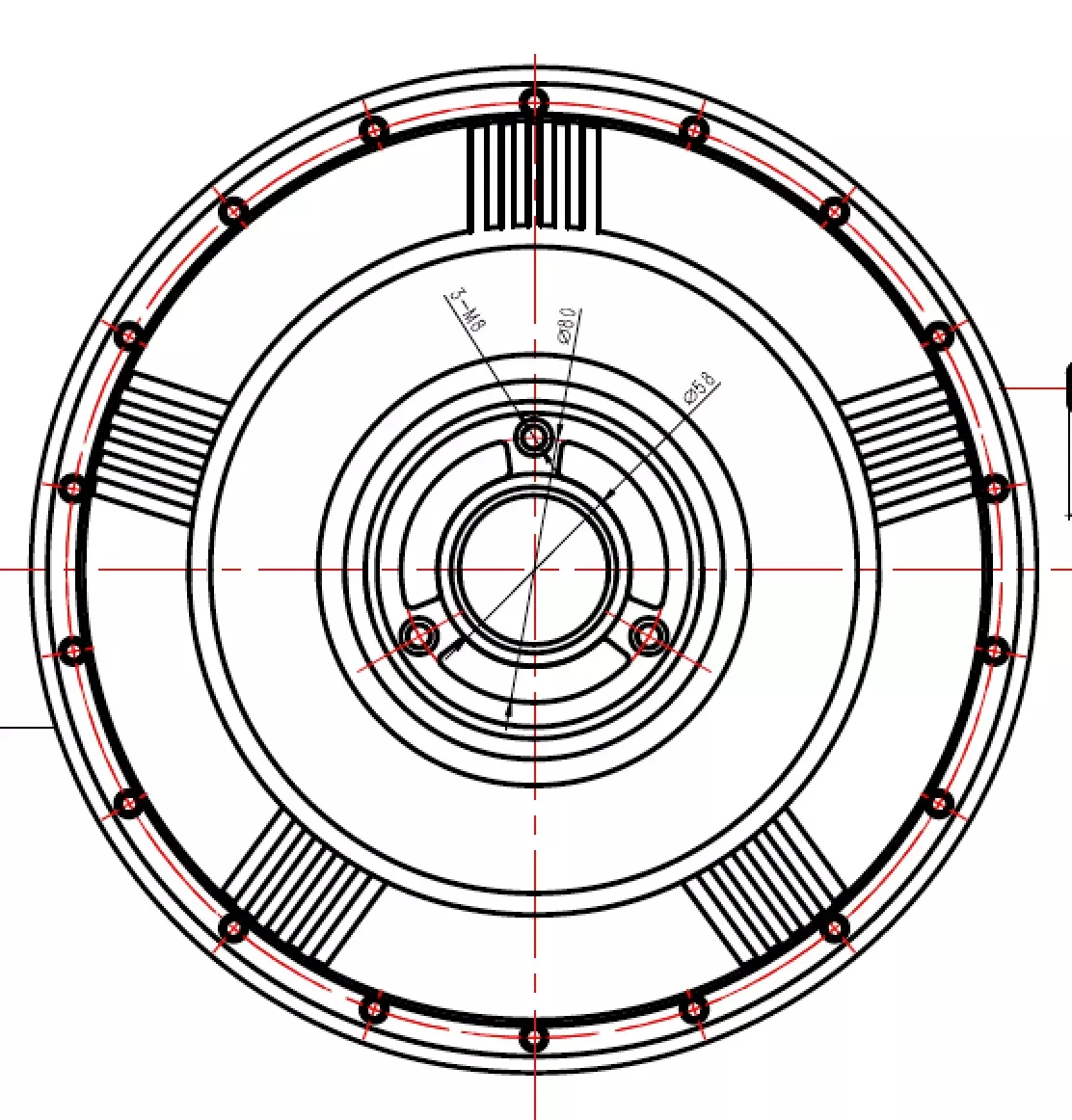

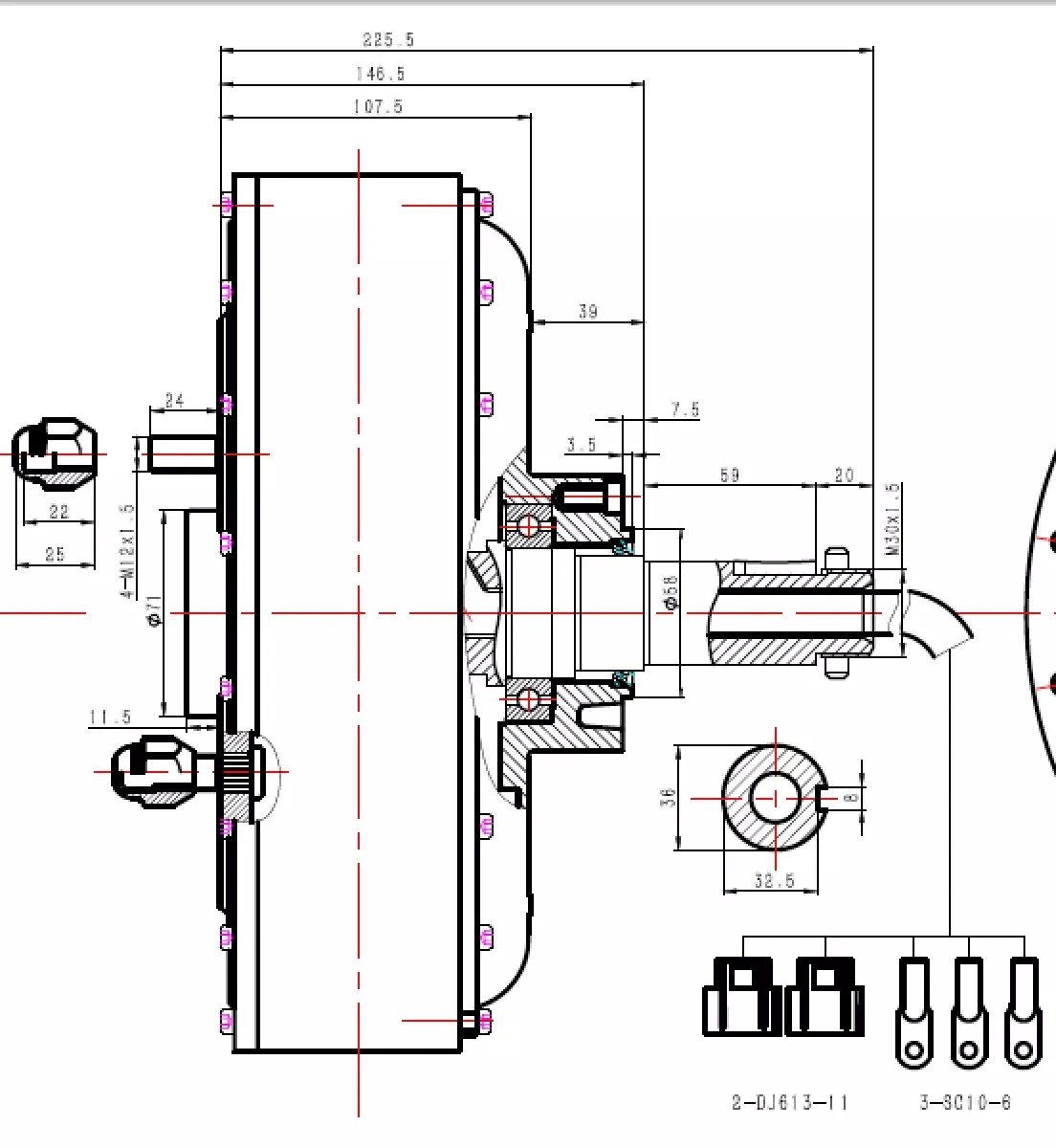

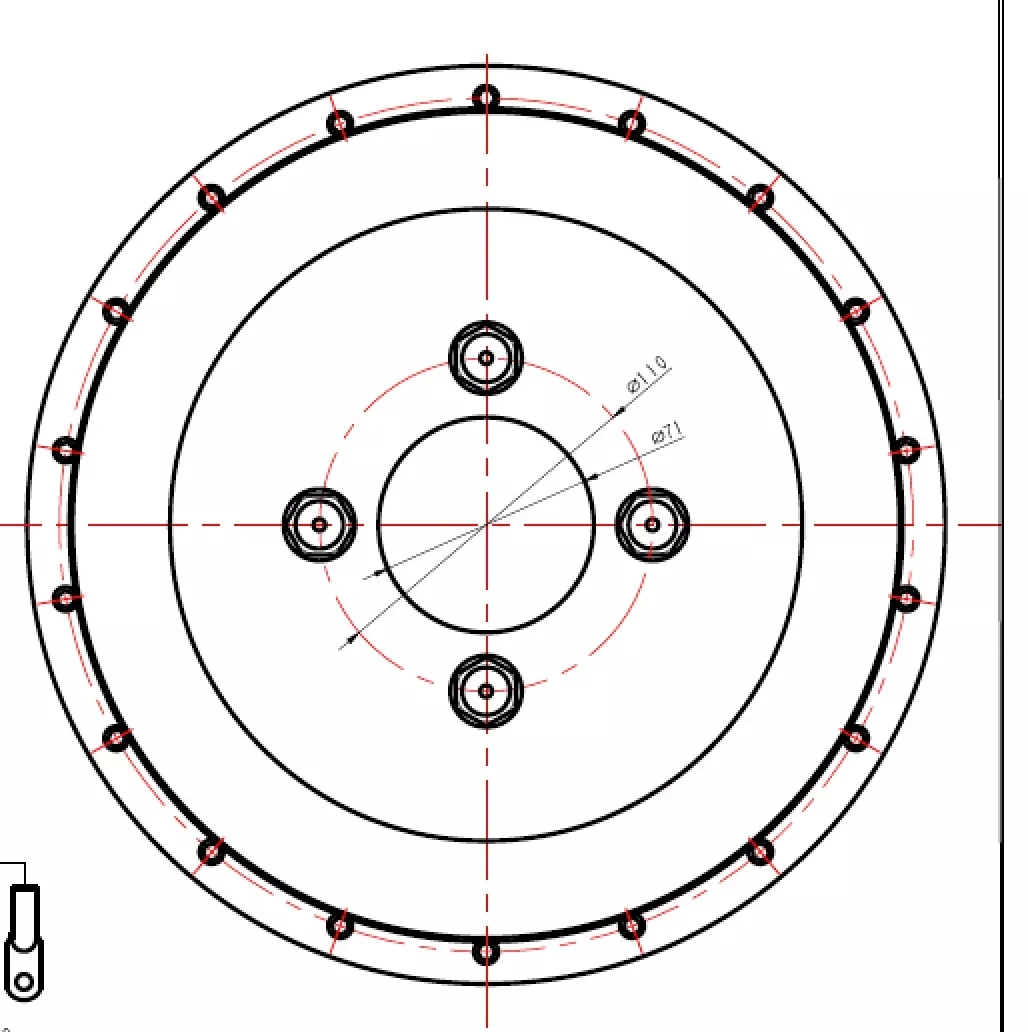

Details Images
Product packaging
Customer warranty
1.motor for 2 years
2. 6 months controller and charger
3.One year battery
Why choose us?
1. Pass CE or EEC certification
2. 100% QC inspection before leaving the factory
3. We produce products strictly according to your requirements
4. Sales quota: 40% in the United States, 30% in Europe, 15% in Southeast Asia, 10% in the Middle East, and 5% in Africa 5. 5. 5. every day 24-hour after-sales tracking service to ensure customers Feedback
6. Perfect development and supply chain to provide you with subsequent guarantees
